Why Choose HarborHoist®?
Whether you choose the HarborHoist 1.5 or the next-generation HarborHoist H2, both models deliver the strength, flexibility, and protection HydroHoist is known for.
| Free-Floating FlexibilityTie to docks or pilings for quick adaptability in challenging environments. |
| Rugged Marine ConstructionPolyethylene tanks, aluminum frames, and UV-resistant materials for long-lasting performance. |
| Made in the USAProudly engineered and manufactured since 1964 with unmatched quality standards. |
| Ideal for Fresh or SaltwaterEngineered for performance in any waterfront environment. |
Find Your Perfect HarborHoist®
Whether you need the flexibility of the 1.5 or the power and performance of the H2, HarborHoist gives you the confidence of HydroHoist engineering with the versatility of a free-floating design.
Free-Floating Flexibility – Tie to docks or pilings for quick adaptability in challenging environments.
Low-Profile Design – Preserve your waterfront view while adding protection.
Rugged Marine Construction – Polyethylene tanks, aluminum frames, and UV-resistant materials for long-lasting performance.
Level-Lifting Frame – Provides safe, smooth, and balanced lifting every time.
Ideal for Fresh or Saltwater – Engineered for performance in any waterfront environment.
Safe Passenger Access – Continuous walkways and stable loading for worry-free use.
Adaptable for Growth – Add capacity or adjust configurations as your boating needs evolve.
HarborHoist® 1.5 – Flexible, Durable, Proven
Perfect for boats 28′ and under, the HarborHoist 1.5 offers strength and dependability in a simple, easy-to-use package.
Product Features:
Rugged, marine-grade polyethylene tanks
Aluminum structure to extend product life
Continuous walkways for easy, safe access

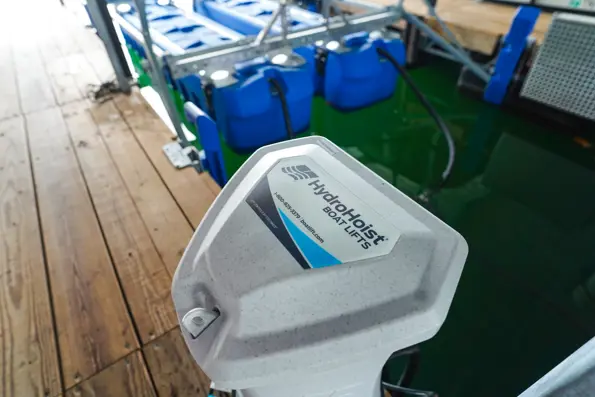

Push-button control mounted directly on the lift
Compatible with U-shaped, double-wide, L-shaped, and square docks
Supports inboard wake, pontoon, and tritoon boats
Specifications – HarborHoist® 1.5 Models
Available in multiple capacities to match your vessel:
Model | Capacity | Min. Water Depth | Min. Slip Width | No. of Floats | Water Depth Required | Beam of Boat | Bunks |
|---|---|---|---|---|---|---|---|
5500H1.5 | 5,000 lbs 2,494 kg | 11 ft 3.35 m | 16′-10″ 5.13 m | 6 | 24″ + draft 0.609 m + draft | Up to 9′6″ 2.74 m | 2 – 3″x 8″x 16′ 0.05 x 0.203 x 4.876 m |
7500H1.5 | 7,500 lbs 3,401 kg | 11 ft 3.35 m | 22′-6″ 6.85 m | 8 | 24″ + draft 0.609 m + draft | Up to 9′6″ 2.74 m | 2 – 3″x 8″x 20′ 0.05 x 0.203 x 6.096 m |
9500H1.5 | 9,500 lbs 4,309 kg | 11 ft 3.35 m | 28′-6″ 6.85 m | 10 | 24″ + draft 0.609 m + draft | Up to 9′6″ 2.74 m | 2 – 3″x 8″x 20′ 0.05 x 0.203 x 6.096 m |
Overall width for all models: 34″ + Beam (0.863 m) | All models: 110V/15A
HarborHoist® H2 – The Next Generation Floating Lift
Engineered for larger boats up to 21,000 lbs, the HarborHoist H2 delivers unmatched versatility, strength, and durability in both fresh and saltwater environments.
Product Features:
Sleek, low-profile design preserves your waterfront view
Robust, hurricane- and flood-resistant build
Innovative level-lifting frame for ultimate stability
Secure mooring with simple rope tie-off options
Designed for both residential and commercial waterfronts
Easily adjustable and customizable configurations
Specifications – HarborHoist® 2.0 Models
Available in multiple capacities to match your vessel:
Model | Capacity | Min. Water Depth | Min. Slip Width | No. of Floats | Beam of Boat | Bunks |
|---|---|---|---|---|---|---|
5000H2 | 5,000 lbs 2,268 kg | 48″ 1.22 m | 4 | Up to 9′6″ 2.89 m | ||
7500H2 | 7,500 lbs 3,401 kg | 48″ 1.22 m | 6 | Up to 10′6″ 3.20 m | ||
9000H2 | 9,500 lbs 4,309 kg | 55″ 1.40 m | 4 | Up to 9′6″ 2.89 m | ||
10000H2 | 10,000 lbs 4,536 kg | 48″ 1.22 m | 8 | Up to 11′6″ 3.51 m | ||
13500H2 | 13,500 lbs 6,123 kg | 55″ 1.40 m | 6 | Up to 10′6″ 3.20 m | ||
16000H2 | 16,000 lbs 7,257 kg | 55″ 1.40 m | 6 + Aux | Up to 10′6″ 3.20 m | ||
18000H2 | 18,000 lbs 8,165 kg | 55″ 1.40 m | 8 | Up to 11′6″ 3.51 m | ||
21000H2 | 21,000 lbs 9,525 kg | 55″ 1.40 m | 8 + Aux | Up to 11′6″ 3.51 m |
FAQs – HarborHoist®
What weight capacity can HarborHoist handle?
HarborHoist 1.5: 5,500–9,500 lbs
HarborHoist H2: 5,000–21,000 lbs
Is the HarborHoist easy to move?
Yes. The HarborHoist is free-floating and can be easily tied to a dock or piling, making it simple to relocate—especially useful in hurricane- or flood-prone regions.
Can HarborHoist be used in saltwater?
Absolutely. Both models are engineered with marine-grade materials and UV protection, making them ideal for both fresh and saltwater applications.
Which model is right for me?
Choose the 1.5 if you have a boat 28′ and under.
Choose the H2 for larger boats (up to 21,000 lbs) or if you need maximum flexibility for future upgrades.
