U-Shaped Slips
Front mounting may preserve access along the sides of the boat when the slip geometry limits a traditional lift arrangement.
Why Choose the Front Mount UltraLift®?
Specially engineered for coves, canals, and low-water shorelines, the UltraLift Front Mount delivers the same legendary HydroHoist protection — keeping your boat high, dry, and ready for every adventure, even where traditional lifts can’t perform.
| Above-Water Steel DesignEliminates rust and corrosion for unmatched durability and longer system life. |
| Safety, stability, confidenceBalanced lift geometry, adjustable bunks, and wide footprint help keep your boat high, dry, and secure in variable conditions. |
| Made in the USAProudly engineered and manufactured since 1964 with unmatched quality standards. |
Start With Your Dock Layout
Is Front Mount Right for Your Dock?
Front Mount is designed for compatible floating docks where a conventional UltraLift placement is not practical. Start with the shape of the slip, the space surrounding the boat and the location available for the lift connection.
L-Shaped Docks
A front-mounted configuration can make use of corner or end-slip space where standard lift attachment is difficult.
Double-Wide or Shared Slips
Front Mount may protect one boat while preserving adjacent space for another vessel, PWC or usable dock access.
Extra-Wide Slips
Front mounting can position the lift without requiring a conventional connection across an unusually wide opening.
Front Mount may not be the right fit when:
your boat exceeds the published 6,500-lb. capacity, your available
water depth is less than 9 ft., or a standard UltraLift fits the
slip without compromising dock access.
Designed Around the Existing Slip
A specialized lift configuration for waterfronts where standard
mounting simply does not work.
How UltraLift® Front Mount works
The UltraLift® Front Mount operates using a revolutionary pivoting system that functions much like a trailer ramp:
Front Mount Attachment – Heavy-duty steel pivot brackets secure directly to your dock’s front edge
Trailer-Style Loading – When lowered, the rear submerges at an angle, making it easy to drive your boat onto the lift
Dock Integration – In the raised position, the lift applies upward support to your dock, making both stronger
Unlike traditional lifts that need symmetrical slips, the Front Mount adapts to your dock — not the other way around. It’s the go-to choice for boaters who;
Need Space Optimization
Have Uneven Slips
Want Reliable HydroHoist Performance
Choose the Configuration for Your Boat
Both Front Mount models share the same published capacity, water-depth requirement and minimum slip width. The primary difference is the supported boat length and tank configuration.
6500-SF
6,500-lb. capacity
Best for
Compatible Front Mount installations where the boat fits within the shorter published maximum-length requirement.
- Minimum Water Depth
- 9 ft.
- Minimum Slip Width
- 9 ft.
- Maximum Boat Length
- 25 ft.
- Metric Capacity
- 2,948 kg
Tank configuration:
1 × 200.75 in. L × 40 in. W × 15 in. D
1 × 200.75 in. L × 40 in. W × 15 in. D
6500-LF
6,500-lb. capacity
Best for
Longer compatible boats that require the extended Front Mount tank configuration.
- Minimum Water Depth
- 9 ft.
- Minimum Slip Width
- 9 ft.
- Maximum Boat Length
- 28 ft.
- Metric Capacity
- 2,948 kg
Tank configuration:
1 × 209.75 in. L × 45 in. W × 15 in. D
1 × 209.75 in. L × 45 in. W × 15 in. D
| Model | Capacity | Minimum Water Depth | Minimum Slip Width | Maximum Boat Length | Tank Size |
|---|---|---|---|---|---|
| 6500-SF | 6,500 lbs. 2,948 kg |
9 ft. 2.74 m |
9 ft. 2.74 m |
25 ft. 7.92 m |
1 × 200.75 in. L × 40 in. W × 15 in. D 5.09 m L × 1.02 m W × 0.38 m D |
| 6500-LF | 6,500 lbs. 2,948 kg |
9 ft. 2.74 m |
9 ft. 2.74 m |
28 ft. 8.53 m |
1 × 209.75 in. L × 45 in. W × 15 in. D 5.33 m L × 1.14 m W × 0.38 m D |
Final compatibility depends on the boat’s fully loaded weight,
dimensions, hull configuration, weight distribution, available depth,
dock construction and attachment points. An authorized HydroHoist
dealer must confirm the final model and installation.
Standard Features of the Front Mount UltraLift®
Unique front-mounting system designed for specialty docks
Solid-steel circular pivots for stable lift performance
Dock-strengthening technology adds buoyancy and rigidity
Ultra-tough polyethylene tanks resist impact and environmental wear
Above-water steel positioning prevents corrosion
Push-button HydroMate® controls (solar-ready) available
Hot-dipped galvanized steel frame for maximum durability
Best For:
U-Shaped Slips – Maintain easy access and full functionality
Double-Wide Moorings – Share space while protecting your boat independently
L-Shaped Docks – Maximize valuable corner space
Extra-Wide Slips – Leave more room for fishing, PWCs, or lounging
A Purpose-Built Solution for Challenging Dock Layouts
Not every dock or slip is designed for a standard rear-mounted boat lift. When space is limited or dock geometry creates access challenges, a front mount boat lift provides a smart, proven alternative. The UltraLift® Front Mount configuration is engineered specifically for slips where traditional lift placement isn’t practical.
When a Front Mount Boat Lift Is the Right Choice
A front mount configuration is often the best solution for:
U-shaped slips
L-shaped docks
Double-wide or shared moorings
Slips with limited rear clearance or turning radius
By positioning the lift at the front of the slip, boats can be lifted smoothly without reworking the entire dock layout—making it an ideal option for both private waterfront properties and commercial facilities.
👉 Need help determining if a front mount lift is right for your dock or marina?
Connect with a local dealer to evaluate your layout, review measurements, and design the right UltraLift® solution for your space.

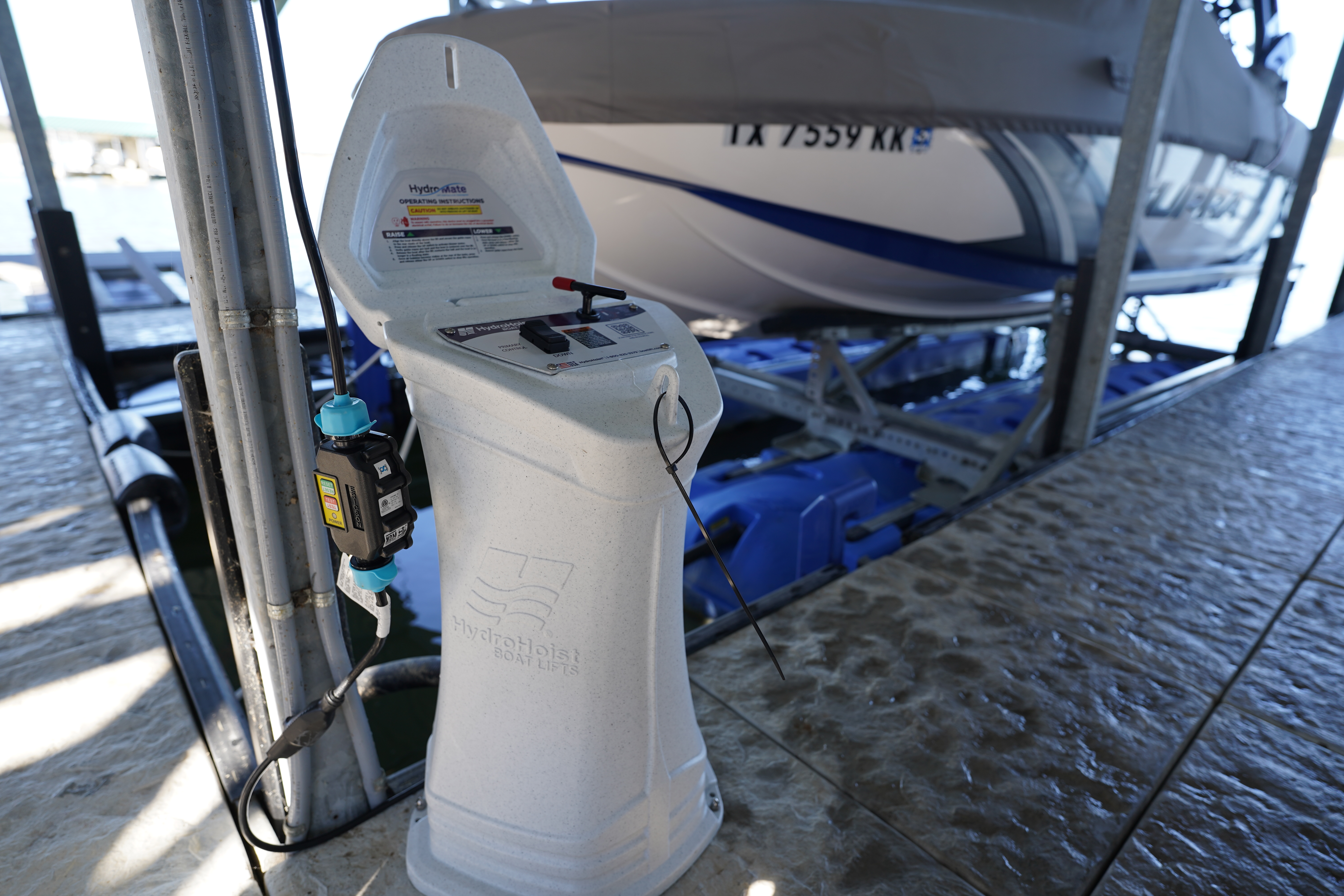

HydroMate® Control Units
Premium Boat Lift Controls for Smarter, Safer Operation
Take your UltraLift® to the next level with HydroMate® — the control unit engineered for efficiency, safety, and convenience. From solar-powered independence to enhanced GFCI protection, HydroMate® is built to perform in tough marine environments while keeping your family safe on the dock.
Key benefits include:
Seamless solar integration for energy independence
Enhanced safety features with improved GFCI protection
Smart control options with myDockLink™ connectivity
Marine-grade construction built to withstand the elements
Compatible with all UL2 lifts, HydroMate® delivers smoother operation, longer system life, and unmatched peace of mind.

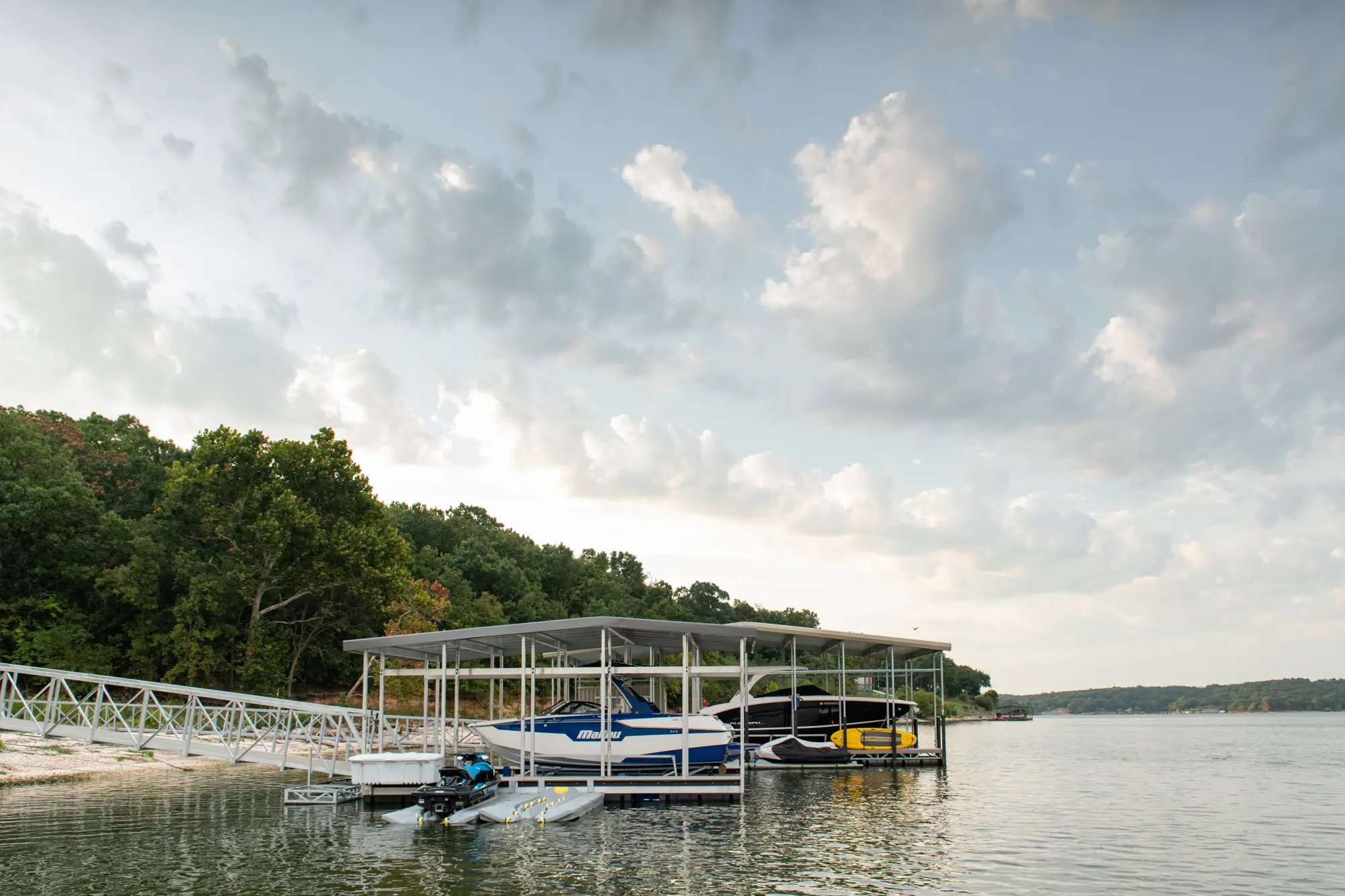

A Site-Specific Solution
Built Around the Dock You Already Have
Front Mount installations are configured around the existing dock, boat dimensions and available operating space. A local HydroHoist dealer reviews the site before confirming the model, attachment, alignment and hull-support configuration.
1
Review the Dock Layout
Confirm slip geometry, attachment points and available clearance.
2
Measure the Boat and Water
Document loaded weight, length, beam, hull design and seasonal depth.
3
Confirm the Final Configuration
Select the model, hull supports, controls and installation approach.
